Purging Refractory

PURGING PLUG

1. Precast Well Block, Seating Block & Sleeves

citycatrefractories - well-blocks

ULCC and Spinel quality PREFABS in various designs and sizes of well blocks, seating blocks and sleeves are manufactured for specific requirement of the users.

Special Features

  • High Hot Strength
  • Superior Spalling Resistance
  • High Density
  • Superior Erosion Resistance
  • Low Penetration Depth

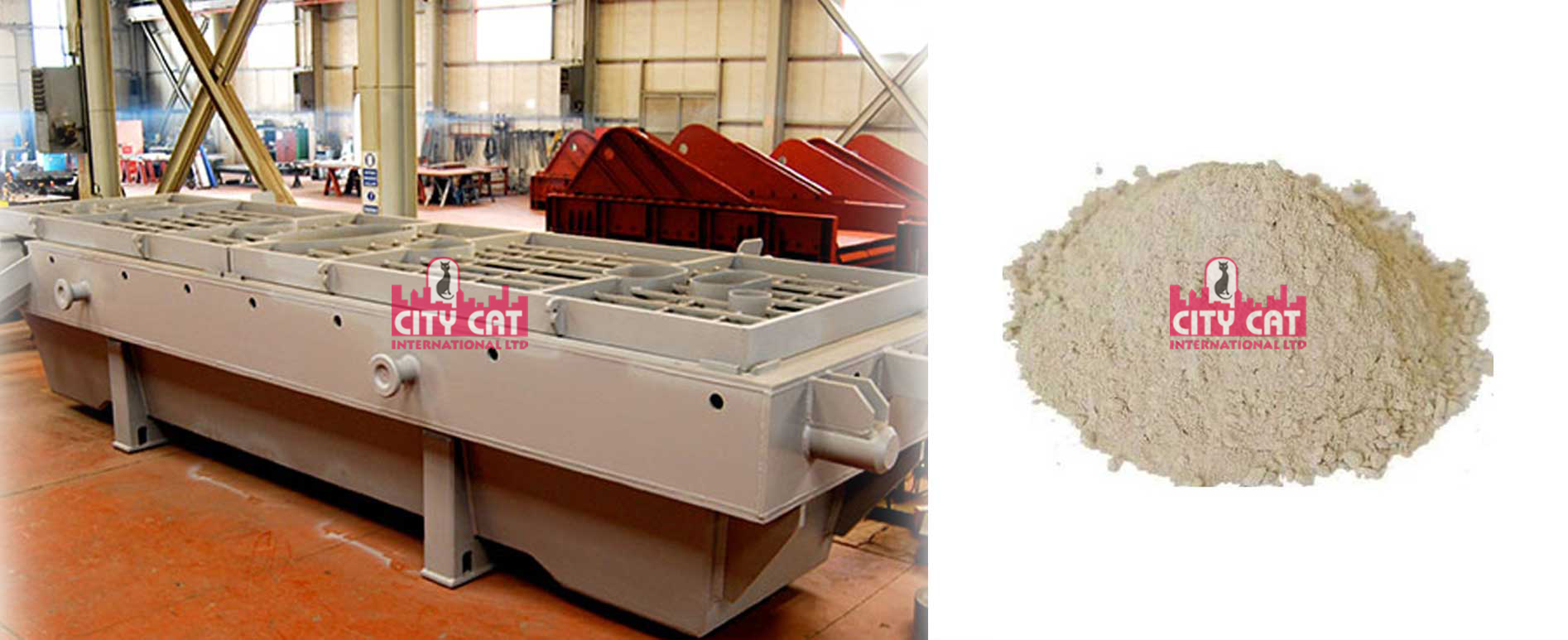

2. Castable & Precast for Tundish

citycatrefractories- castables-precast

Tundish Permanent lining: CC TDCAST - 2AK Striker pad, Dams, Weirs: CC PREFAB SP 70/ SP 90 High performance castables and precast for diffrent areas of tundish. The various areas inlude tundish permanent lining, cover, and tundish dam blocks, striker pads, tundish well blocks.

Special Features

  • Superior spalling resistance, Higher erosion resistance.
  • Higher abrasion resistance to metal turbulence.

3. Oxygen Lancing Pipes

citycatrefractories-oxygen-lancine-pipes

High Frequency Induction Welded (HFIW) Oxygen Lancing Pipes. Oxygen lancing Pipes are Manufactured from hot rolled Carbon Steel.

END USES

These pipes are used for blowing oxygen in electric arc furnace.

SIZES

6 mm NB to 40 mm NB Outside diameter: From 9.5 mm to 48.3 mm , Wall thickness: From 1.80 mm to 3.20 mm Length: up to 7.00 mtrs.

PIPE ENDS

Plain, Threaded or Non Threaded with crimping coupling.

SURFACE FINISH

1) Black (self-colored)
2) Ceramic coated (inside as well as outside) Ceramic coated lancing Pipes have number of additional characteristics.Increased resistance against heat & erosion. Longer life resulting in speedy de-carborization & better metal oxygen interaction. Cost effectiveness: The above factors result in power saving, lower consumtion of electrodes, and lower melting time

PRODUCTION STANDARDS

Confirming to IS -10577.

PACKING

Black lancing Pipes in Bare bundles. Ceramic Coated Pipes in special hessian cloth.

INSPECTION

Mill's certificate or inspection by an independent agency.

TESTS PERFORMED

Dimensional Checking, Hydro Testing (Pressure Test), Flattening Test, Drift test.

4. Directional Purging Plugs

citycatrefractories- purging-plug

Based on known- how from plibrico GmbH, a range of High performance Directional Purging Plugs are manufactured suiting customised designed and secondary metallurgical operations adopted by different steel plants. Plugs are based on tabular alumina, alumina - magnesia spinel and alumina - chrome based materials.

Special Features

  • High resistance to slag and abrasion
  • High thermal shocks resistance
  • Low RTE values
  • Numbers of purging slits vary from 20 - 30 having thickness of 0.25 - 0.30 mm
  • Minium risk of metal infiltration.
  • High Blowing capacity of 1000 - 1200 Lt./min.
DATA OF PRECAST SEATING BLOCK, WELL BLOCK AND DIRECTIONAL PURGING PLUG
Quality Al203
%
Fe2o3
%
MgO
%
BD 110°C/24hrs
gm/cc
AP CCS 110°C/24hrs
Kg/cm
1500°C/cm2 1000°C/5hrs
Kg/cm2
1600°C/5hrs
Kg/cm2
PLC 1000°C/5hrs
%
1500°C/3hrs
%
1600°C/5hrs
%
Area of application
110°C/24hrs % 1000°C/3hrs %
PP SEATING BLOCKS& SLEEVES SG WELL BLOCKS
PREFAB SBT4A 82 0.6 - 2.95 12 - 450 900 - - - + 0.5 - LF/VD/VAD
PREFAB HA1 94 0.2 - 2.90 - 27 600 - 600 650 0.2 - 0.3 LF/VD/VAD/VOD
PREFAB HA2 93 0.2 - 2.90 - 19 600 - 600 1000 0.2 - 0.5 LF/VD/VAD/VOD
SPINEL SEATING BLOCK
PREFAB TS 1 85 - 8 2.90 - - 300 600 - - - 0.5 - LF/VD/VAD/VOD
PREFAB HA 3 95 0.2 2 - - - 650 - 650 1100 0.1 - 0.3 LF/VD/VAD/VOD
CASTMAG 7M 85 - 8 3.00 15 - 250 800 - - - 0.5 - LF/VD/VAD/VOD
PURGING PLUG
PURGICONE HA 1 96 0.2 - 2.90 - 27 600 - 600 650 0.2 - + 0.3 LF/VD/VOD/VAD
PURGICONE HA 2 93 0.2 - 2.90 - 19 600 - 600 1000 0.2 - 0.5 LF/VDVAD
PURGICONE HA 3 94 0.2 2.5 3.00 - 650 - 650 1200 0.1 - 0.2 VD/VOD/LF -
PURGICONE HA 4 91 0.2 3.5 2.90 - - 400 - 450 600 + 0.1 - + 0.5 VD/VOD/LF
PURGICONE HA 5 88 0.2 - 3.00 - - 300 - 400 600 + 0.1 - + 0.5 VD/VOD/LF
